Carbide / C-Max
Stone Setting, Engraving, GRS > Gravers, Handles, Storage & QC-Tool Holders
C-Max® stepped round graver blank, Ø 0.8 mm
Available from stock
| Item no. | Ø | CHF | ||
|---|---|---|---|---|
 |
G022-782 | 0.80 mm | 15.70 |
|
 |
G022-783 | 1.00 mm | 15.70 |
|
 |
G022-785 | 1.40 mm | 15.70 |
|
 |
G022-786 | 1.60 mm | 15.70 |
|
 |
G022-787 | 1.80 mm | 15.70 |
|
 |
G022-788 | 2.00 mm | 15.70 |
|
 |
G022-789 | 2.20 mm | 15.70 |
|
 |
G022-791 | Tapper point | 22.10 |
|
 |
G022-854 | Set | 137.50 |
|
These new C-Max carbide tools from GRS will increase the efficiency of stone-setters and engravers. Stone-setters will save time removing the metal between and around stones when using pavé and other setting techniques. Engravers can shape small gravers without having to use a blank that is much too big for the job.

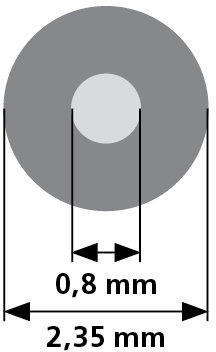

The C-Max carbide gravers with a 2.35-mm shaft are available with diameters rising in 0.2-mm gradations from 0.8 mm to 2.2 mm.
A finely-tapered point perfect for texturing or stippling is also available.
These gravers are specially made for engravers, stone setters, and other craftsmen to combine the ability to hold a precise edge with the toughness needed to cut through many engravable metals. Years of development have produced a tungsten carbide graver with the right blend of hardness and toughness for hand engraving and stone setting applications. C-Max achieves a metallurgical balance like no other carbide. For years, engravers and jewellers have used other carbide gravers that break easily or do not hold a fine edge.
This frustration is gone forever, thanks to C-Max carbide. Try these tools and do better work in noticeably less time. The C-Max gravers are available in a variety of preshaped and blank styles, including the custom GRS V-Point shape in 75, 90, 105, and 120 degrees.
The following accessories are available:
 | G004-853 | Round QC Tool Holder, 2.35 mm, Single Holder |
 | G004-854 | Round QC Tool Holder, 2.35 mm, 3 Pack |
 | G004-855 | Round QC Tool Holder, 2.35 mm, 10 pcs. |
