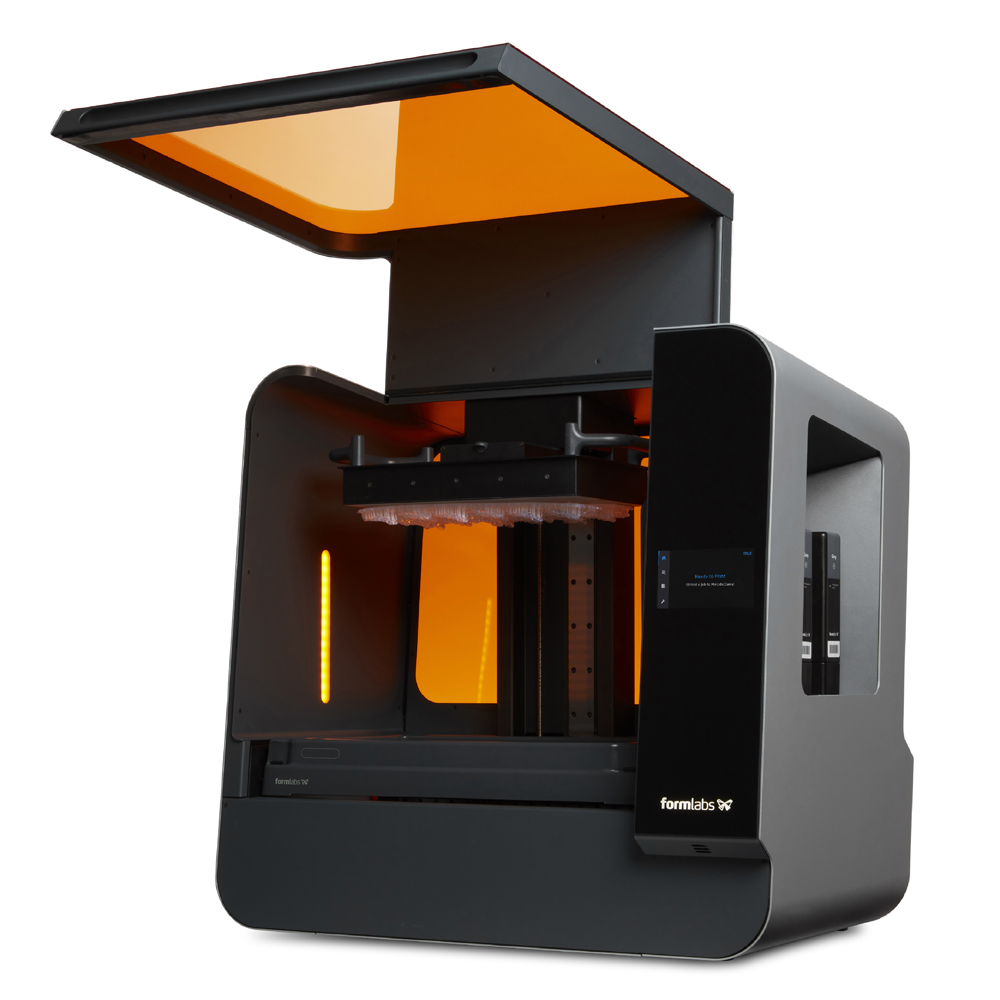

The Formlabs Form 3BL is dependable, large format dental 3D printer for high-volume dental production. This robust, production-ready printer is built on tried and tested Formlabs technology, making it the reliable choice for dental production.

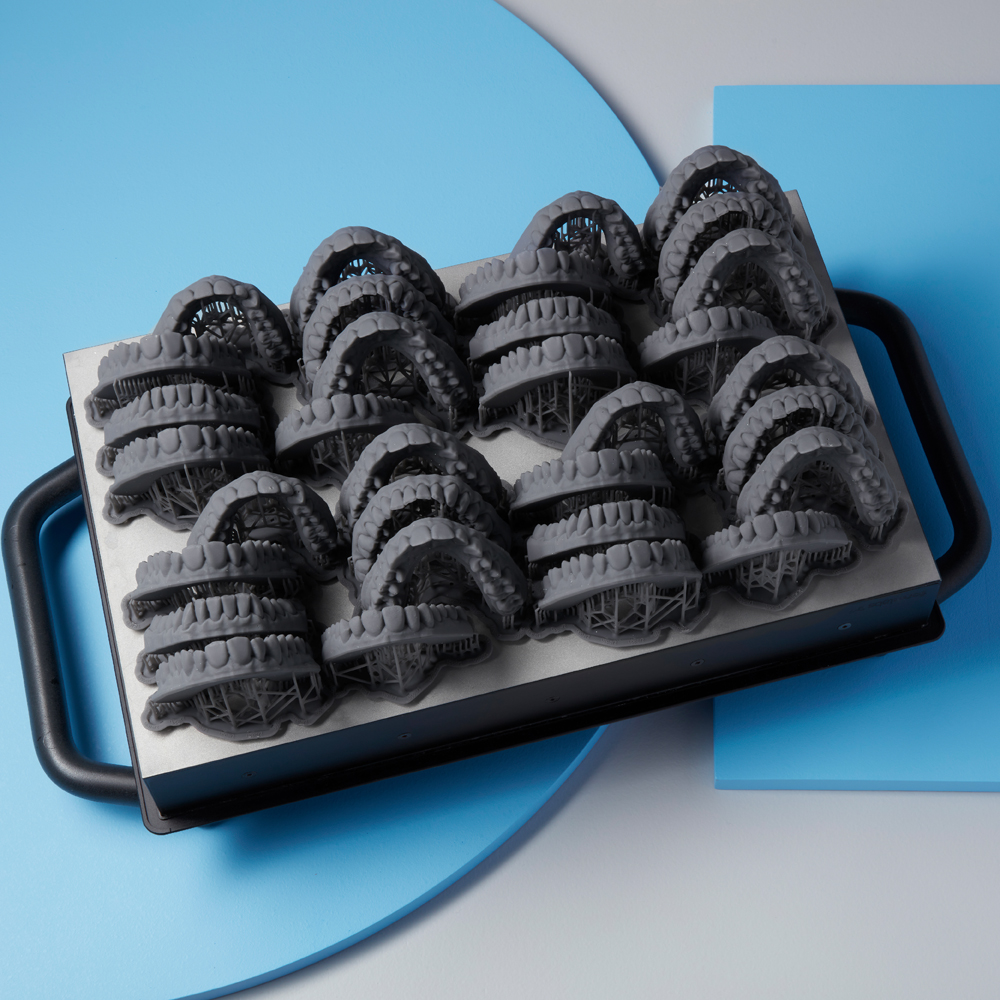

The Form 3BL works full time so you don’t have to. Print 48 models in a day, with only two printer changeovers. Spend less time troubleshooting and get new hires up to speed quickly with intuitively designed, easy-to-use hardware and software, maximizing your productivity while minimizing printer supervision.

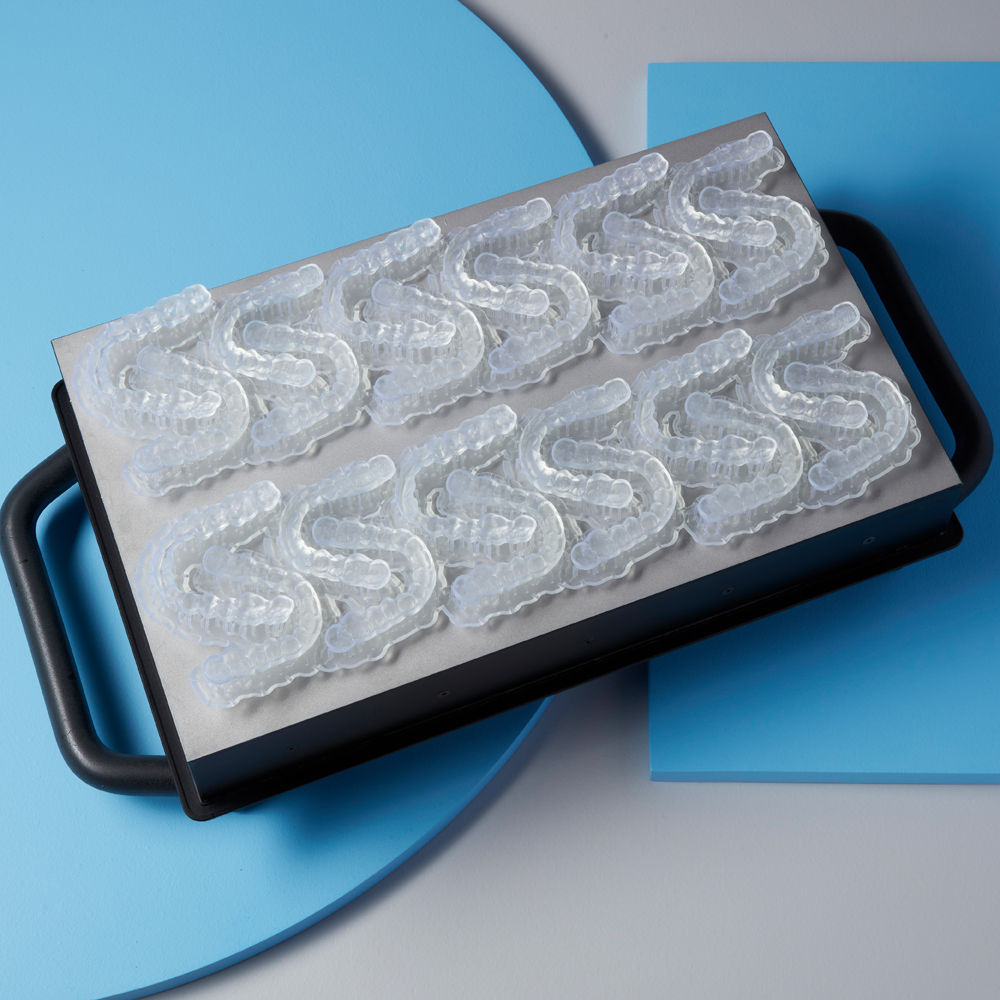

The Form 3BL, Formlabs’ only large-scale 3D printer optimized for biocompatible materials, has been thoroughly validated by Formlabs’ dental team to meet the accuracy requirements for dental aligner production, with consistent part quality and accuracy across the entire build plane.

The Form 3BL includes a Finish Kit with a Rinse Bucket and a set of Cleaning Tools to help keep your workspace clean and organized while putting the finishing touches on your large format 3D printed parts.

Scale up your production operation and print biocompatible models with the Form 3BL.

Plus, with the Form 3BL, a large format medical 3D printer optimized for biocompatible and engineering materials, you can print life-sized patient anatomy in a single build.

Request a free printed sample to know the quality of printing and find the best resin for your needs:

Biocompatible Resin Library

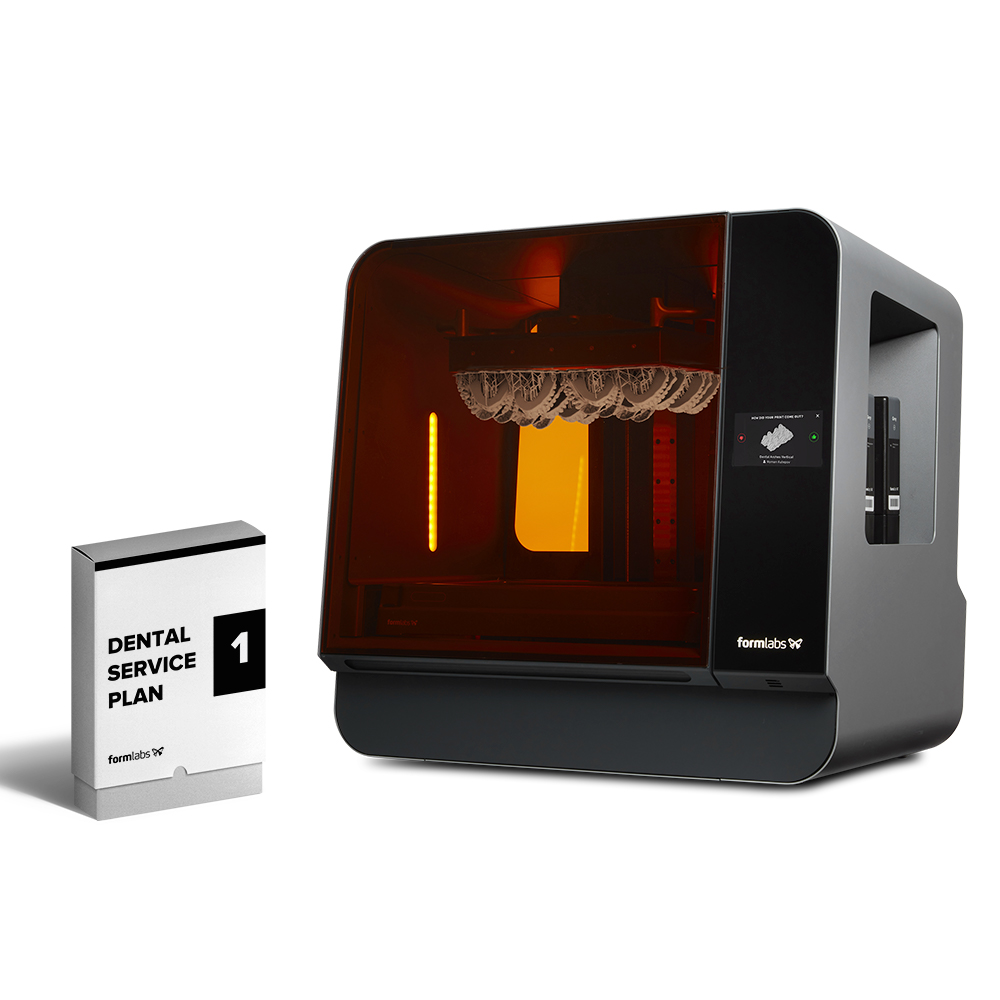

The Formlabs Dental Service Plan includes:

• Printer / Component Replacement
• Hot Swap
• Extended Warranty (up to 3 years)
• Chat Support
• Email Support
• Phone Support
• Priority Email Support
• Live (online), Customized Training: 90 min
• Expedited Troubleshooting
• Proactive Check-Ins: Bi-Annual

Tech Specs

1-year warranty included

Technology: Low Force Stereolithography (LFS)™

XY Resolution: 25 microns

Laser Spot Size: 85 microns

Laser Power: Two 250 mW lasers

Build Volume (W x D x H): 33.5 × 20 × 30 cm

Layer Thickness: 25 – 300 microns

Printer Dimensions (W × D × H): 77 × 52 × 74 cm

Resin Cartridges: 2

Biocompatible Materials: Yes

Supports: Auto-Generated; Light-Touch Removal

Operating Temperature: Auto-heats to 35 °C

Temperature Control: Air-heated print chamber

Power Requirements: 100–240 VAC, 8.5A MAX, 50/60 Hz, 650 W

Laser Specifications: 2 Light Processing Units / EN 60825-1:2007 certified / Class 1 Laser Product / 405 nm wavelength / 250 mW power / 85 micron (0.0033 in) laser spot

Connectivity: Wi-Fi (2.4, 5 GHz) / Ethernet (1000 Mbit) / USB 2.0

Printer Control: 5.5" interactive touchscreen / 1280 × 720 resolution

Alerts: Touchscreen alerts / SMS/email via Dashboard / Two LED status indicators / Speaker for audio alerts

Weight: 54.4 kg

System Requirements: Windows 7 (64-bit) and up Mac OS X 10.12 and up OpenGL 2.1 / 4 GB RAM (8 GB recommended)

File Types: STL and OBJ file input, FORM file output

PreForm Print Setup Features:

• One-Click Print
• Adaptive layer thickness for faster printing with fine details
• Remote Print
• Auto-orient for optimal print position
• Auto-mesh repair
• Auto-generation of supports
• Rotate, scale, duplicate, and mirror
• Layer slicer for path inspection
• Available in multiple languages

Dashboard Printer Management Features:

• Manage prints and printers via the cloud
• Track resin and tank usage over time
• SMS and email alerts
• Create group accounts to share printers and control access
