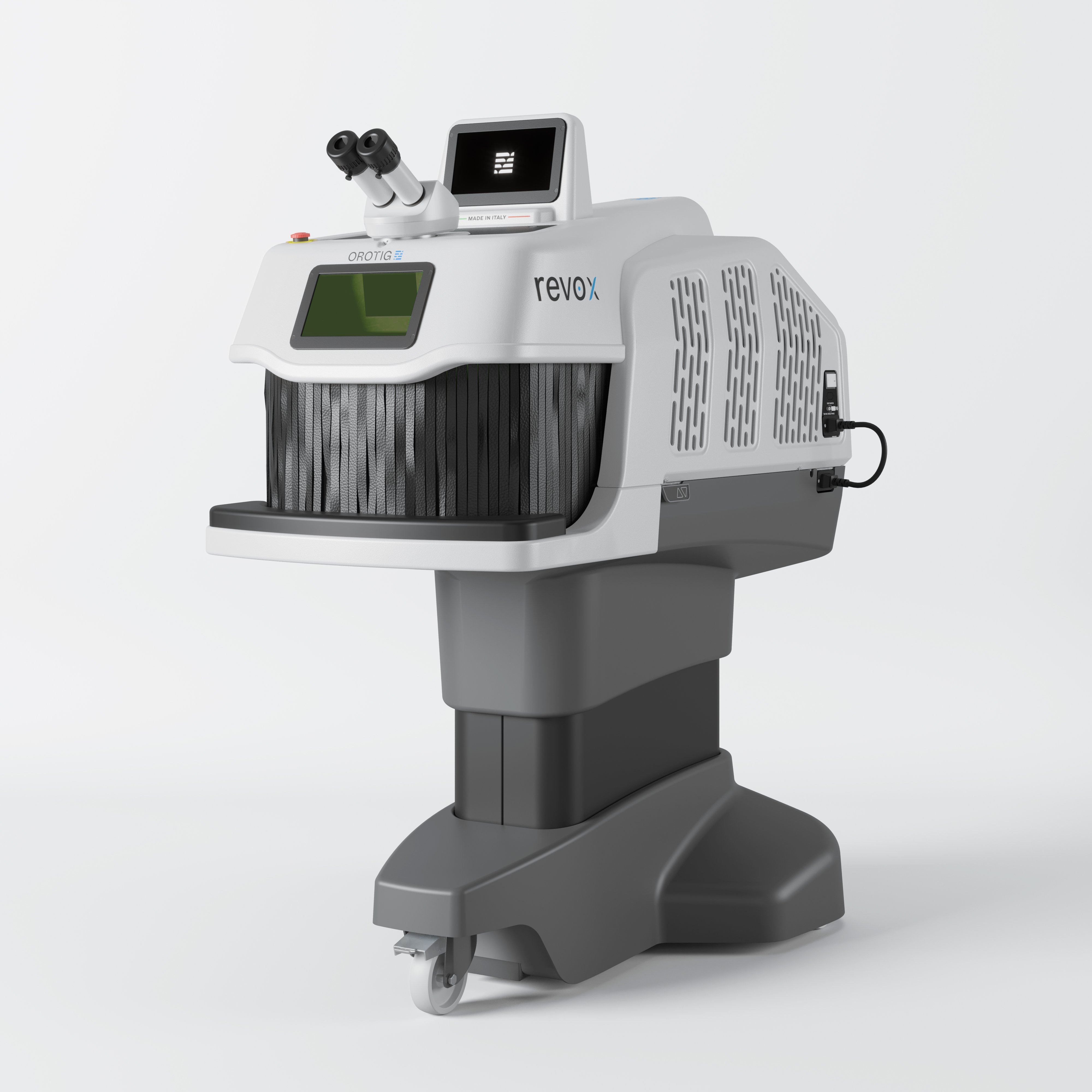

Powerlaser REVO X Plus

High performance and perfect welds, no compromises!

Thanks to its high frequency and peak performance as well as a state-of-the-art cooling system, the REVO X Plus is our most powerful welding machine, capable of working in a cycle of more than 15 hours.

Enhanced performance: With an enhanced cooling system, REVO X Plus can sustain a continuous working cycle while upholding the highest standards of welding quality.

Top performing on all metals: With a maximum power of 240 J and a peak power reaching 10 kW, REVO X Plus ensures exceptional welding quality, particularly on reflective metals.

Smart Patented Footswitch for more control: Performs all the functions of the traditional footswitch and also enables control over parameter adjustment by varying the pressure on the footswitch, eliminating the need to interrupt workflow.

Preset programs: Possibility of viewing and recording machining operations and dynamically setting the work program, choosing it from a library of preset programs.

Constant sanitisation of the environment thanks to the IUVAPS™ system, which eliminates dust and pathogens.

Technical Data:

• Crystal type: Nd:YAG @ 1064
• Pulse power: 240 J
• Pulse duration: 25 ms
• Peak pulse power: 10 kW
• Average power: 120 W
• Pulse frequency:  0 - 40 Hz
• Power supply: 230 VAC ± 10%, 1P +N + PE, 50/60 Hz, 2.2 kW
• Focal diameter: 0.1 to 2 mm
• Command access: External with 7” capacitive touch screen display, internal with rotary switch
• Stereo microscope: 45° with 10X and crosshairs (Leica)
• Connectivity and Wi-Fi: Telemetry for easy assistance and remote updates
• Cooling system: Liquid cooled (8l) with forced ventilation
• Weight: 75 Kg
• Dimensions  WxDxH: 60 x 98 x 128 cm
• Warranty: 2 years

Contact us to schedule your visit to our service centre to try out different laser welding systems!
