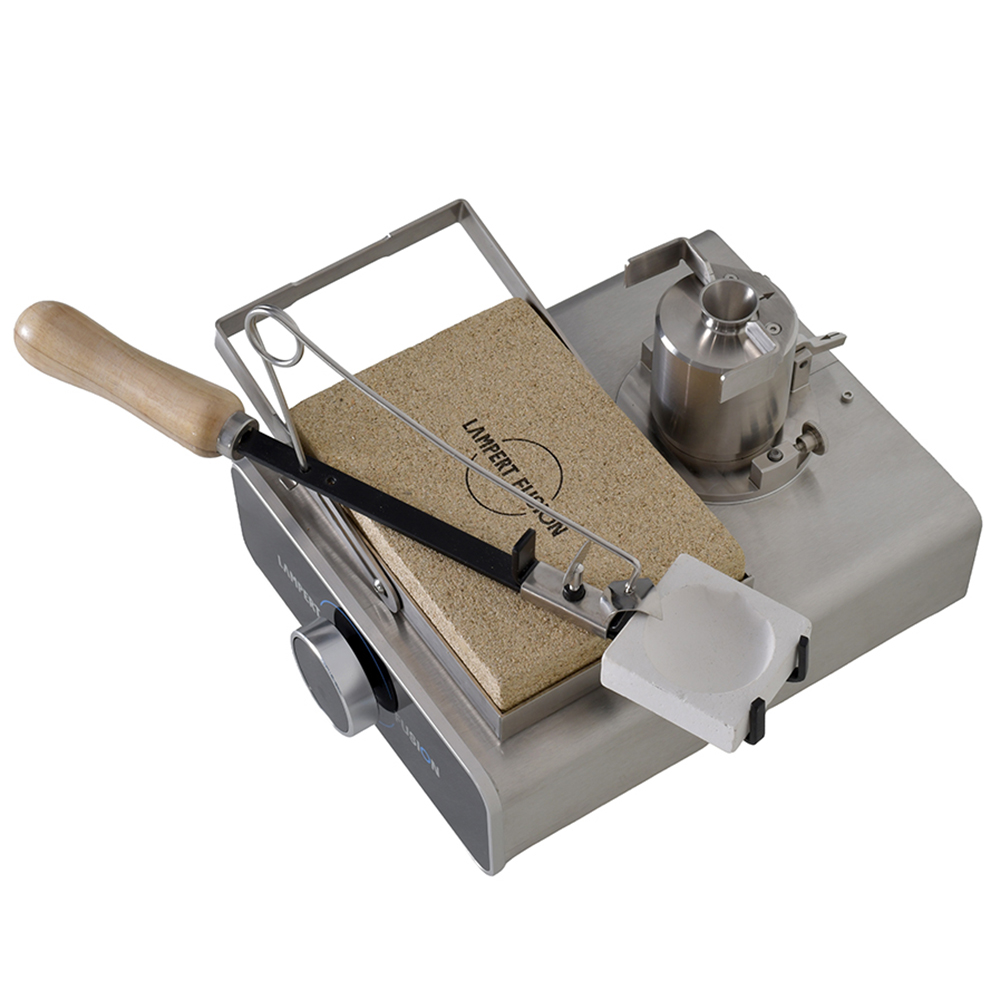

Lampert FUSION – Compact Centrifugal Casting Machine

Cast rings directly in your own workshop.

The Lampert FUSION allows you to produce high-quality ring blanks in gold and silver quickly, easily, and with consistent results – without investing and without complex preparation.

Ideal for goldsmiths who want to work efficiently while offering their customers a unique, hands-on experience.

Key Benefits

• Direct ring casting on-site

• No investing and no lost-wax process required

• No need to remove sprues

• Suitable for gold and silver alloys up to 15 g

• Re-melt old jewellery and create new pieces

• Casting under protective gas atmosphere possible (e.g. Argon 4.6)

Flexibility

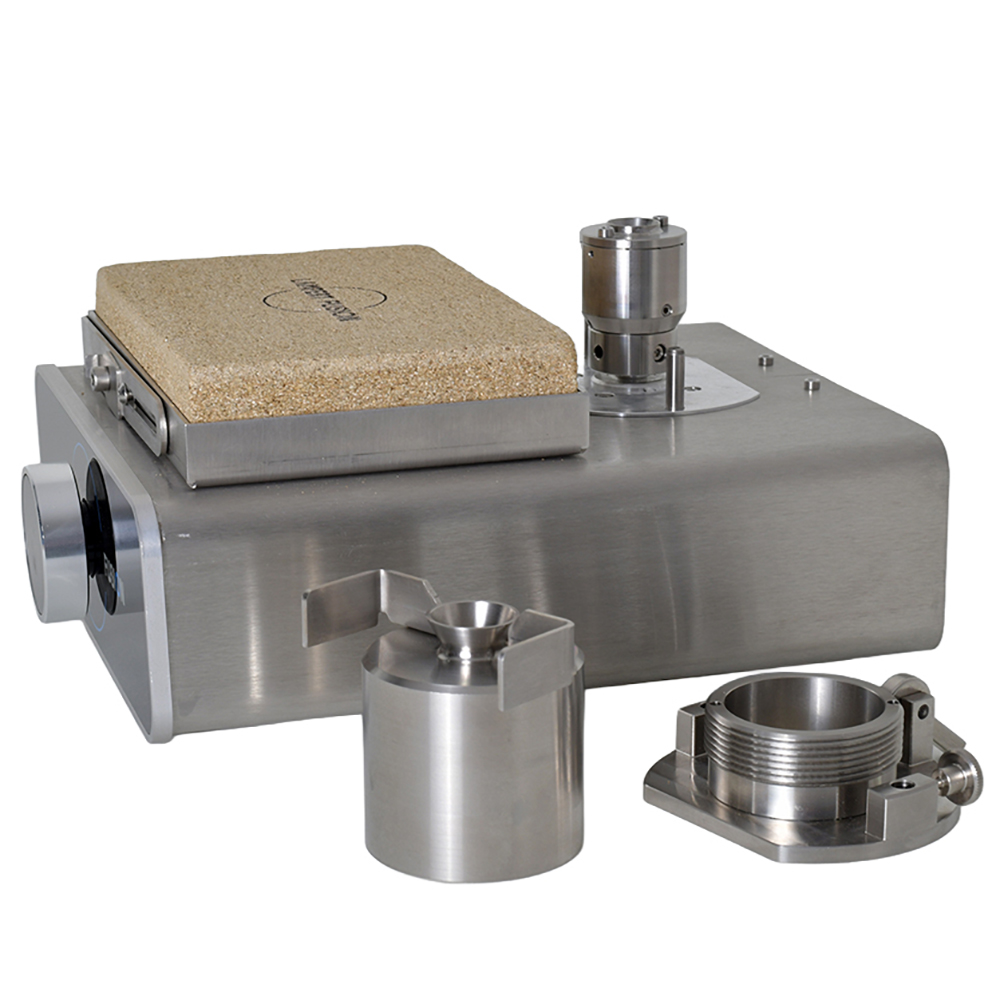

• Moulds available for 18, 21 and 24 mm outer diameter

• Ring width adjustable up to 10 mm

Easy Operation

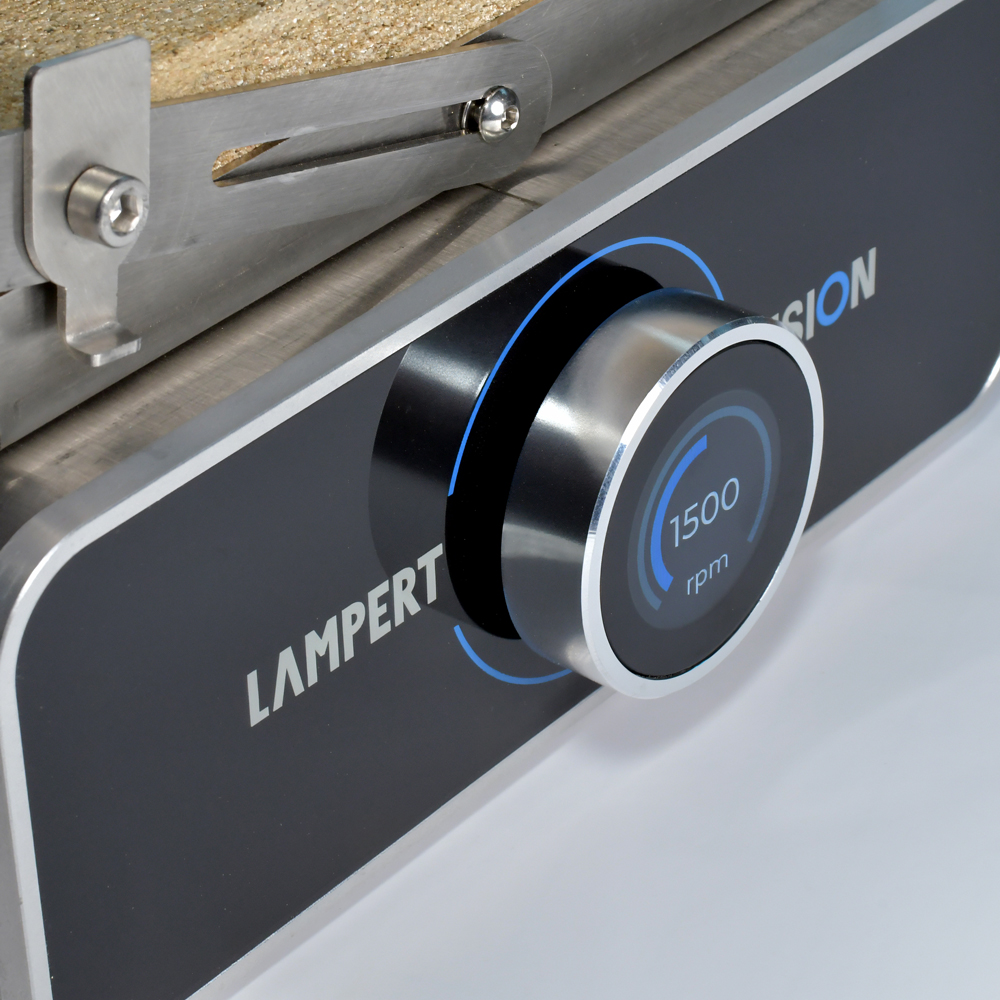

All functions are controlled via a single rotary push knob with integrated display.

Technical Data

• Speed: up to 3,000 rpm

• Melting capacity: up to 15 g

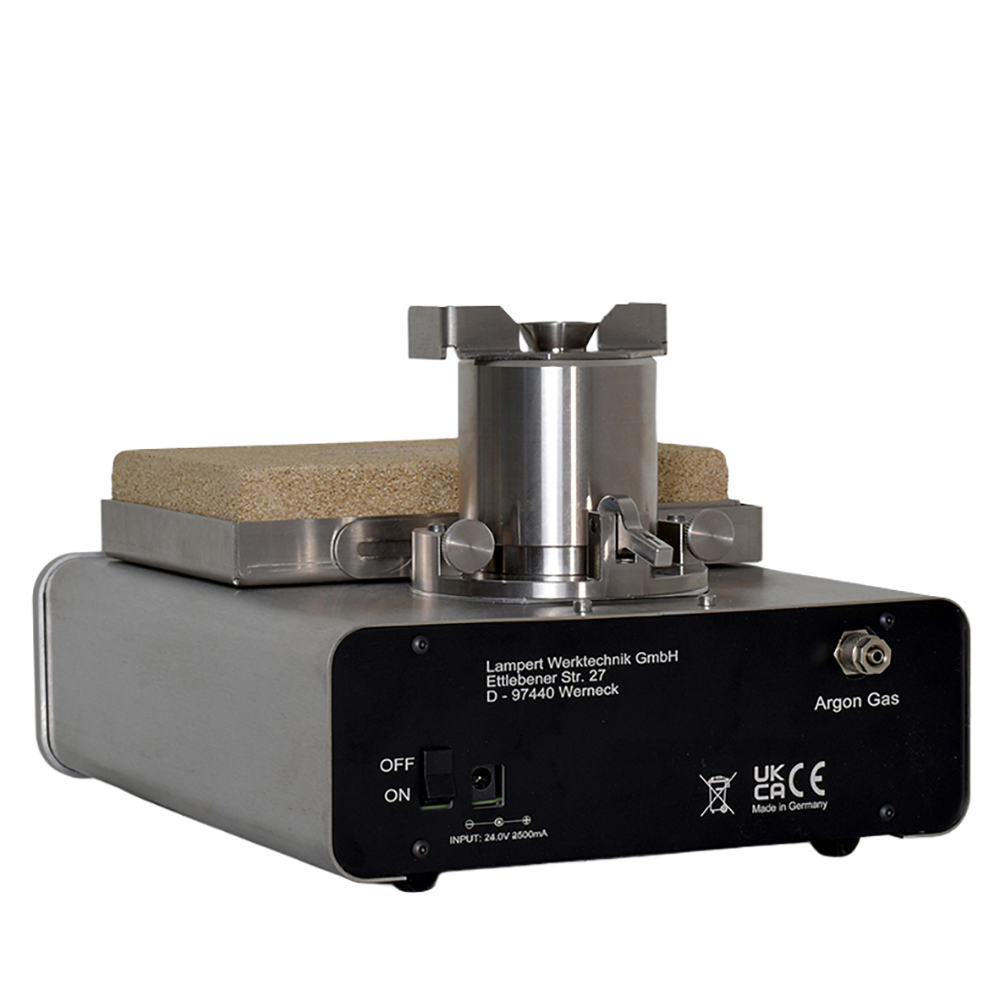

• Power supply: 24 V DC / 230 V AC

• Motor: brushless DC motor (BLDC)

• Noise level: < 60 dB (A)

• Dimensions: 280 × 210 × 165 mm

• Protection class: IP20

Scope of Delivery

• FUSION casting machine

• Stainless steel ring mould

• Fireproof chamotte stone

• Power supply with cable

• Protective gas connection hose

• Casting spoon with holder

• Crucible

SAFETY NOTICE

Always wear heat-resistant gloves and safety goggles during casting.
