ESD Resin Cartridge, 1L

Available from stock




Variety
Description
Accessories
Media
  Item no. TypeName CHF
383005 ClearClear 170.00
383075 ESDESD 240.00
383010 WhiteWhite 170.00
383015 GreyGrey 170.00
383020 BlackBlack 170.00
383026 Castable WaxCastable Wax 310.00
383027 Castable Wax 40Castable Wax 40 280.00
383041 Tough 1500Tough 1500 210.00
383040 Tough 2000Tough 2000 210.00
383070 DurableDurable 210.00
383045 Grey ProGrey Pro 210.00
383035 Rigid 4000Rigid 4000 240.00
383036 Rigid 10KRigid 10K 310.00
383030 FlexibleFlexible 230.00
383031 Flexible 80AFlexible 80A 240.00
383065 ElasticElastic 50A 240.00
383060 High TempHigh Temp 240.00
383047 Draft V.2Draft V.2 170.00
383050 Dental SGDental SG 340.00
383057 Custom TrayCustom Tray 280.00
383051 Surgical GuideSurgical Guide 280.00
383105 BioMed ClearBioMed Clear 390.00
383100 BioMed AmberBioMed Amber 280.00
383055 Dental ModelDental Model 170.00
383056 Dental LT ClearDental LT Clear 450.00


Increase the operational efficiency and improve the yield of your electronics manufacturing lines with ESD Resin, a cost-effective solution to create custom ESD-safe production tooling.



Use ESD Resin to prototype and validate electronics production workflows, print static-dissipative parts that repel dust and powder, and create enclosures to protect sensitive electronics from static discharge



Support print resolutions: 100 µm and 50µm.



Post-curing required.

Compatibility

Printer compatibility: Form 3(+), Form 3L, Form 3B(+), Form 3BL, Form 3, Form 3B

Compatible with these resin tanks: Form 3 v2.1, Form 3L

Compatible with these build platforms: Form 3 Build Platform, Form 3 Build Platform 2, Form 3 Stainless Steel Build Platform, Form 3L Build Platform

Note: Print settings for this material may not be available yet on Form 3L and Form 3BL printers.

Why Choose ESD Resin?

Use ESD Resin to reduce risk and increase the yield on your manufacturing line by 3D printing custom tools, jigs, and fixtures for automotive, aerospace, electronics manufacturing.

  • Static-Dissipative

Protect your critical electronics from unregulated static discharge to prevent component failures.

  • High Toughness

With its high modulus and impact strength, ESD Resin is made to withstand operation on the production line.



Applications

ESD Resin is a cost-effective solution for producing static-dissipative parts designed to endure use on the factory floor.

  • Tooling & fixturing for electronics manufacturing.

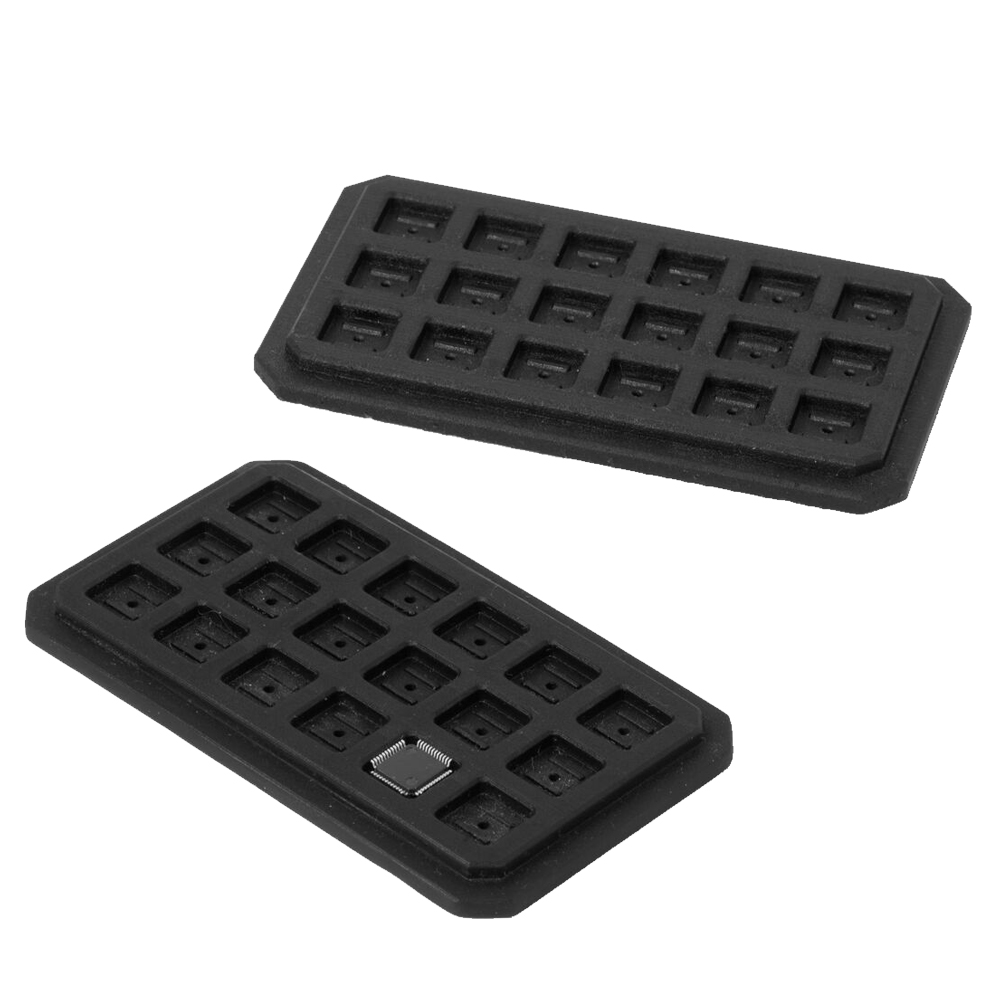

  • Custom trays for component handling and storage.
  • Anti-static prototype and end-use components.

Materials Properties

Post-cured at 70ºC

Surface Resistivity: 105 - 108

Ultimate Tensile Strength: 44.2 Mpa

Tensile Modulus: 1.937 Gpa

Strain @ break: 12%

Notched Izod: 26 J/m

Heat Deflection Temperature 0.45 MPA: 54.2ºC

Heat Deflection Temperature 1.8 MPA: 62.2ºC

Post-Processing

  • Form Wash Settings

Duration: 20 Minutes in IPA / TPM

Do not leave ESD Resin in solvent for longer than 20 minutes, as excessive solvent exposure affects the quality of the final part. We recommend washing ESD Resin separately from other resins to avoid staining.

  • Form Cure Settings

Duration: 60 minutes

Temperature: 70° C

Follow the post-curing indications to achieve maximum material properties.
